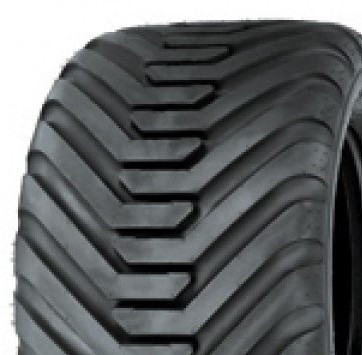

500/60-22.5 16PR/163A8/159B TL Galaxy Flot-Pro I-3 Flotation Implement Tyre

Product Description

Galaxy FLOT PRO is specially designed for low end applications like balers,wagons and other agricultural implements.It displays excellent flotation and self cleaning characteristics. The tire has mode rate traction flotation profile and provides maximum soil protection and low soil compaction. E-mark: Brand: Galaxy Tread Pattern: 'Flot-Pro I-3' Load/Speed Index: 163A8/159B Max Load: see below Ma x Speed: see below Operating Pressure: see below OD: 1170mm Width: 500mm Aspect Ratio: - Tread Depth: - Rolling Circumference: 3460mm Static Loaded Radius: 510mm Fits rim width: AG16.00 X 22.5 16. 00 X 22.5 17.00 X 22.5 15.00 X 22.5 Manufacturer's part no.: 499384 Keywords: Galaxy Flot-Pro I-3 Flotation Implement Tyre Alternative imperial tyre size nomenclature: Size on tyre: ETRTO Tyre Si ze (European): Size on tyre: - Quicksearch size: 50060225 Recommended Load Speed Constant Load Drive Wheel Inflation Pressure 0.8 bar kmph Static 3212 kmph 10 1910 kmph 20 1722 kmph 30 1531 kmph 40 1367 kmph 50 1230 Inflation Pressure 1.6 bar kmph Static 4818 kmph 10 2870 kmph 20 2583 kmph 30 2296 kmph 40 2050 kmph 50 1845 Inflation Pressure 2 bar kmph Static 5490 kmph 10 3270 kmph 20 2943 kmph 30 2616 kmph 40 2336 kmph 50 2102 Inflation Pressure 2.4 bar kmph Static 6108 kmph 10 3640 kmph 20 3275 kmph 30 2911 kmph 40 2599 kmph 50 2339 Inflation Pressure 2.8 bar kmph Static 6683 kmph 10 3980 kmph 20 3583 kmph 30 3185 kmph 40 2844 kmph 50 2560 Inflation Pressure 3.2 bar kmph Static 7726 kmph 10 4310 kmph 20 3875 kmph 30 3444 kmph 40 3075 kmph 50 2768 Recommended Load Speed Constant Load Free Rolling In flation Pressure 0.8 bar kmph Static 3218 kmph 10 2730 kmph 20 2457 kmph 30 2184 kmph 40 1950 kmph 50 1755 Inflation Pressure 1.6 bar kmph Static 4818 kmph 10 4090 kmph 20 3679 kmph 30 3270 kmph 40 2920 kmph 50 2628 Inflation Pressure 2 bar kmph Static 5495 kmph 10 4660 kmph 20 4196 kmph 30 3730 kmph 40 3330 kmp h 50 2997 Inflation Pressure 2.4 bar kmph Static 6105 kmph 10 5180 kmph 20 4662 kmph 30 4144 kmph 40 3700 kmph 50 3330 Inflation Pressure 2.8 bar kmph Static 6683 kmph 10 5670 kmph 20 5103 kmph 30 4536 kmph 40 4050 kmph 50 3645 Inflation Pressure 3.2 bar kmph Static 7219 kmph 10 6130 kmph 20 5513 kmph 30 4900 k mph 40 4375 kmph 50 3938
