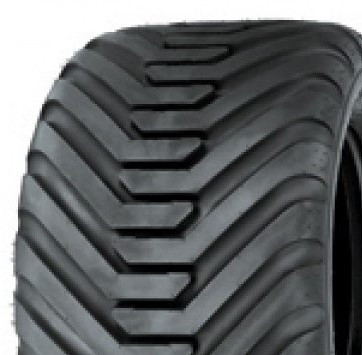

600/50-22.5 16PR/165A8/161B TL Galaxy Flot-Pro I-3 Flotation Implement Tyre

Product Description

Galaxy FLOT PRO is specially designed for low end applications like balers,wagons and other agricultural implements.It displays excellent flotation and self cleaning characteristics. The tire has mode rate traction flotation profile and provides maximum soil protection and low soil compaction. E-mark: Brand: Galaxy Tread Pattern: 'Flot-Pro I-3' Load/Speed Index: 165A8/161B Max Load: see below Ma x Speed: see below Operating Pressure: see below OD: 1170mm Width: 600mm Aspect Ratio: - Tread Depth: - Rolling Circumference: 3450mm Static Loaded Radius: 520mm Fits rim width: AG 20.00 X 22.5 M anufacturer's part no.: 499386 Keywords: Galaxy Flot-Pro I-3 Flotation Implement Tyre Alternative imperial tyre size nomenclature: Size on tyre: ETRTO Tyre Size (European): Size on tyre: - Quick search size: 60050225 Recommended Load Speed Constant Load Drive Wheel Inflation Pressure 0.8 bar kmph Static 3570 kmph 10 2170 kmph 15 2060 kmph 25 1840 kmph 30 1740 kmph 40 1550 kmph 50 1400 Inflation Pressure 1.2 bar kmph Static 4600 kmph 10 2800 kmph 15 2660 kmph 25 2380 kmph 30 2240 kmph 40 2000 kmph 50 1800 Inflation Pr essure 1.6 bar kmph Static 5590 kmph 10 3400 kmph 15 3230 kmph 25 2890 kmph 30 2720 kmph 40 2430 kmph 50 2190 Inflation Pressure 2 bar kmph Static 6440 kmph 10 3920 kmph 15 3720 kmph 25 3330 kmph 30 3140 kmph 40 2800 kmph 50 2520 Inflation Pressure 2.4 bar kmph Static 7480 kmph 10 4550 kmph 15 4320 kmph 25 3870 kmph 30 3640 kmph 40 3250 kmph 50 2930 Inflation Pressure 2.8 bar kmph Static 8400 kmph 10 5110 kkmph 15 4850 kmph 25 4340 kmph 30 4090 kmph 40 3650 kmph 50 3290 Recommended Load Speed Constant Load Free Rolling Inflation Pressure 0.8 bar kmph Static 3600 kmph 10 3050 kmph 15 2900 kmph 25 2590 kmph 30 2440 kmph 40 2180 kmph 50 1960 Inflation Pressure 1.2 bar kmph Static 4620 kmph 10 3920 kmph 15 3720 kmph 25 3330 kmph 30 3140 kmph 40 2800 kmph 50 2520 Inflation Press ure 1.6 bar kmph Static 5690 kmph 10 4830 kmph 15 4590 kmph 25 4110 kmph 30 3860 kmph 40 3450 kmph 50 3110 Inflation Pressure 2 bar kmph Static 6600 kmph 10 5600 kmph 15 5320 kmph 25 4760 kmph 30 4480 kmph 40 4000 kmph 50 3600 Inflation Pressure 2.4 bar kmph Static 7630 kmph 10 6480 kmph 15 6150 kmph 25 550 0 kmph 30 5180 kmph 40 4625 kmph 50 4160 Inflation Pressure 2.8 bar kmph Static 8500 kmph 10 7210 kkmph 15 6850 kmph 25 6130 kmph 30 5770 kmph 40 5150 kmp h 50 4640
